Description
- Wide range of capacity and pressure.
Calibre: 50mm-300mm (2 “-12”)
Capacity: RSW 2.5~171.1m3/min；TRS 1.14~166.49m3/min
Pressure: The pressure of one-stage RSW type up to
10000mmAq (1.0kgf/cm2)
The pressure of two-stage TRS type up to
20000mmAq (2.0kg/cm2) - Delivers completely oil-free air.
- Low oscillation and low noise by dynamic balance whichrevised by computer.
- Smaller change in capacity against change in pressure.
- High efficiency due to special impeller design, great air-delivery low power.
- Simpler and solider structure, less trouble.
- Highest quality pilot & accurate great applied, long life and low noise assured.
- Standardized product with strict quality control.
- Our rotor has used the most advanced technic, one time for all working process of the six-shaft method, to enhance the precision of leave wheel.
- The special cooling design can efficiently reduce the temperature of the lubricate oil in the oil box and gear case, and then make sure the blower’s gear and shaft having a long service life operating under a high pressure。

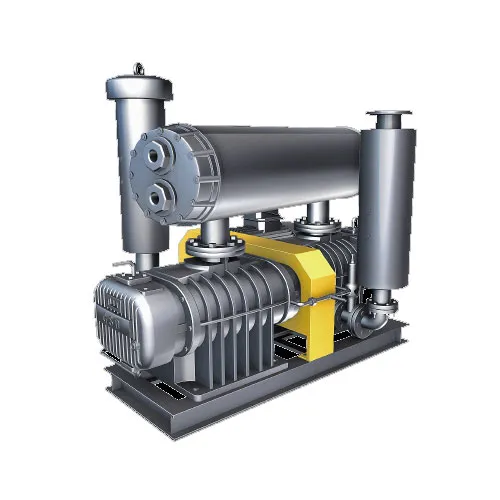

- TRS is a two-stage blowers in series, through two times pressurize, the air in the blower can get a high pressure. Through the condenser’s cooling system, the air discharged from the one-stage blows outlet can be efficiently cooling down, the temperature of the air at the suction inlet of the second stage blower can be below 40℃, which can make sure the regular operation
of the second stage blower.
